Modern homes demand convenience, safety, and efficiency. One device that combines all three is the Chamberlain Garage Door Opener Med Lift Power System. Whether you’re installing it for the first time or looking for a reference guide to troubleshoot, this User Guide Chamberlain Garage Door Opener Med Lift Power System is crafted for homeowners, DIY enthusiasts, and even professional installers. With the right guidance, you’ll ensure smooth operation, longevity, and peak performance from your garage door opener.
Introduction to the Chamberlain Garage Door Opener Med Lift Power System

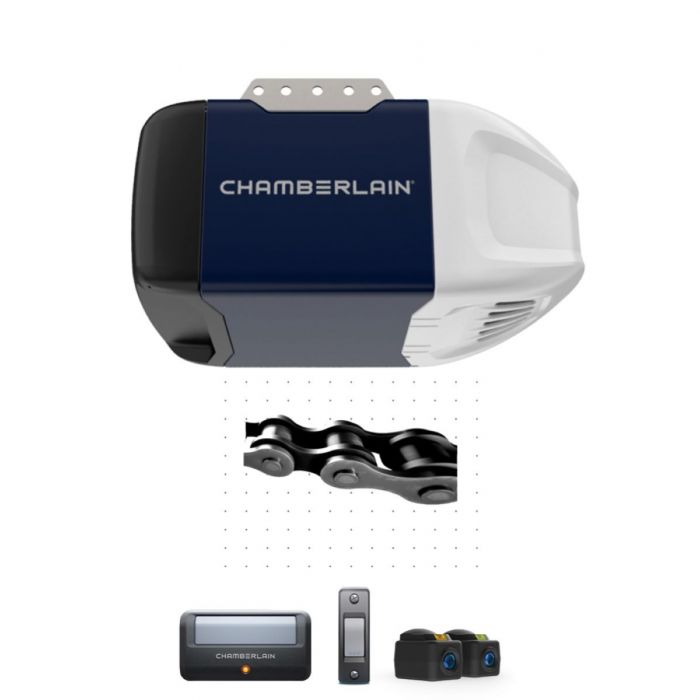

The Chamberlain Med Lift Power System is a top-tier solution for residential garage door automation. Known for its powerful lifting mechanism, quiet operation, and smart technology integrations, it’s an ideal choice for both single and double garage doors. Chamberlain has been a reliable name in home automation and garage door openers for decades, offering high-quality products with detailed manuals and support.
Read too: How Many Remotes Can A Chamberlain Garage Door Opener Have? Understaanding the Limits and Options
Key Features of the Chamberlain Med Lift Power System
Before diving into the setup, here’s an overview of its key features:
- Powerful Lifting Capacity: Equipped with a Med Lift motor, it’s designed for heavy-duty garage doors.
- MyQ Smart Technology: Allows remote access via smartphone or tablet.
- Quiet Operation: Ideal for homes with living spaces adjacent to the garage.
- Battery Backup: Ensures access even during power outages.
- Safety Sensors: Auto-reverse and motion detection for enhanced safety.
- Security+ 2.0 Technology: Rolling code system that changes with every use for maximum security.
Step-by-Step Installation Guide
Installing your Chamberlain Garage Door Opener Med Lift Power System correctly is crucial. If you follow these steps carefully, you can do it yourself without calling in professional help.
1. Gather Tools and Check the Box Contents
Before starting, ensure you have the following tools:
- Power drill
- Screwdrivers (flathead and Phillips)
- Adjustable wrench
- Step ladder
- Stud finder
Check your Chamberlain kit for:
- Motor unit
- Rail assembly
- Trolley
- Safety sensors
- Wall control panel
- Remote controls
- Mounting brackets and hardware
2. Assemble the Rail and Trolley
Attach the rail sections together, slide the trolley onto the rail, and connect the rail to the motor unit. This step forms the backbone of the system.
3. Install the Rail and Motor to the Ceiling
Secure the motor to ceiling joists using metal angle brackets. Make sure it’s level and properly supported. Mount the front of the rail to a header bracket above the garage door.
4. Attach the Door Arm and Bracket
Connect the curved and straight arms to the trolley and garage door. Ensure a snug fit without obstructing the door’s natural motion.
5. Wiring the System
Wire the safety sensors on each side of the garage door, positioning them 6 inches above the floor. Next, wire the wall control panel and plug in the power cord.
6. Program the System
Follow the included instruction manual to program the remote controls and set up your MyQ app integration for remote access.
User Guide Chamberlain Garage Door Opener Med Lift Power System: Setup and Configuration
This section acts as the heart of the user guide. After hardware installation, setup and configuration are essential for optimal operation.
Setting Travel Limits
Travel limits tell your opener how far to open and close. Press and hold the adjustment button until the up arrow blinks. Adjust until the door reaches the fully open position, then press the adjustment button again. Repeat the process for the down limit.
Adjusting Force Settings
Force settings control how much power is applied to move the door. Adjust these if the door reverses before hitting the ground or doesn’t close completely.
- Too much force can be unsafe.
- Too little force can cause the door to stop midway.
Pairing Remotes and Keypads
To pair a remote, press the “Learn” button on the motor until the LED lights up. Within 30 seconds, press the remote button. You’ll hear a click confirming pairing.
For wireless keypads:
- Press “Learn.”
- Enter your 4-digit PIN and press Enter.
- The opener will activate.
Maintenance Tips for Longevity
Maintaining your Chamberlain Garage Door Opener Med Lift Power System regularly ensures reliable performance for years.
1. Monthly Door Balance Check
Disconnect the opener and lift the door halfway manually. It should stay in place. If not, the springs may need adjustment.
2. Lubrication
Apply garage door lubricant to rollers, hinges, and tracks every three months. Never use grease or oil.
3. Safety Sensor Alignment
Misaligned sensors prevent the door from closing. The sensor LEDs should be solid green. If blinking, realign until solid.
4. Backup Battery Check
Test the backup battery twice a year. Unplug the opener to simulate a power outage and operate the door.
Troubleshooting Common Issues
Sometimes, even with a proper setup, you may face operational hiccups. Here’s how to fix the most common issues:
Garage Door Won’t Open or Close
- Check if the safety sensors are aligned.
- Ensure nothing is blocking the sensors.
- Confirm the opener is plugged in and the circuit breaker is not tripped.
Remote Not Responding
- Replace the battery.
- Re-pair the remote using the “Learn” button.
Door Reverses Before Closing
- Re-adjust travel limits.
- Check for obstructions on the floor.
- Ensure force settings are not too low.
Opener Light Stays On
- The motion sensor may be detecting movement.
- Timer setting may be extended — consult the user guide to reset light duration.
Smart Features: Connecting with MyQ App
One of the highlights of the Med Lift Power System is its smart integration with the MyQ app.
Steps to Connect:
- Download the MyQ app from Google Play or Apple Store.
- Create an account.
- Add your Chamberlain device using the serial number found on the motor.
- Follow in-app instructions to complete the setup.
With MyQ, you can:
- Open/close your garage remotely
- Get alerts when the door opens or closes
- Schedule operations
- Share access with family members
Safety and Security Best Practices
Garage door openers are heavy-duty machines. Always follow these safety tips:
- Never walk under a moving garage door.
- Teach children not to play with remote controls.
- Install wall controls out of children’s reach.
- Regularly test the auto-reverse feature with a 2×4 wood plank.
The Chamberlain Med Lift Power System also uses Security+ 2.0 technology, which changes the access code with every use — preventing hacking or unauthorized entry.
When to Call Professional Support
If you face persistent problems despite following this guide, or if you’re unsure about spring tension or electrical connections, don’t hesitate to call a certified Chamberlain technician. Attempting complex fixes without experience can result in injury or damage.
Conclusion: Why Choose the Chamberlain Med Lift Power System
The User Guide Chamberlain Garage Door Opener Med Lift Power System helps homeowners harness the full potential of this premium garage solution. With a blend of robust features, safety measures, and smart integrations, it offers unmatched reliability and performance.
Whether you’re upgrading from an older system or installing a new unit, following this comprehensive guide ensures smooth operation and peace of mind.
