A properly adjusted garage door opener can make all the difference in your day-to-day experience. One common issue homeowners face is a loose belt, especially in belt-driven systems like the Chamberlain B503. If you’ve noticed extra vibration, sagging in the belt, or a jerky door movement, it’s time to tighten the belt on a B503 Chamberlain garage door opener.
In this complete guide, you’ll learn everything you need to know about when, why, and how to adjust the belt tension correctly for the Chamberlain B503 model.
Understanding the B503 Chamberlain Garage Door Opener
Before we get into how to tighten the belt on a B503 Chamberlain garage door opener, let’s take a quick look at what makes this model so popular.
The B503 is a belt-drive garage door opener that is well-known for its ultra-quiet performance. It features:
- A steel-reinforced belt for durability and low noise
- Chamberlain’s MED Lift Power System for lifting standard 7-ft garage doors
- Built-in safety sensors and compatible with MyQ smart garage features
- A smooth start and stop operation to reduce wear on the opener and door
However, even the strongest belts can loosen over time due to regular use, changes in temperature, or natural stretching of the material.
Why Belt Tension Matters
Just like a car’s serpentine belt or a treadmill’s running belt, the garage door opener belt must be properly tensioned for optimal performance. If your belt is too loose, you might experience:
- Delayed or inconsistent door movement
- Excessive noise or jerking motions
- The belt slipping off the trolley or rail system
- Increased strain on the motor and other components
If the belt is too tight, you risk damaging the motor or causing premature wear to the belt and pulleys.
So, getting it just right is essential.
How to Tighten the Belt on a B503 Chamberlain Garage Door Opener
Let’s go step-by-step through the process of tightening the belt correctly and safely.
What You’ll Need
- A ½” or 7/16” wrench (depending on model year)
- A ladder
- A tape measure (optional)
- A flashlight or headlamp (for visibility)
- Safety glasses (recommended)
Step 1: Unplug the Opener for Safety
Before working on any electrical equipment, always unplug it from the power source. This will prevent accidental activation of the opener while your hands are near the moving parts.
Step 2: Locate the Tensioning Nut
- Climb the ladder to access the rail assembly, typically near the motor unit.
- The belt tensioning assembly is found where the trolley meets the belt.
- You will see a spring-loaded bolt with a tensioning nut. This is what controls the belt’s tightness.

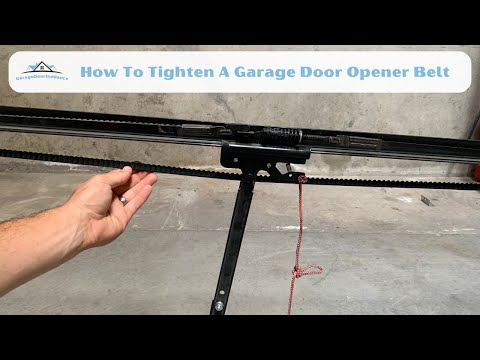

Step 3: Check the Current Tension
Use your fingers to gently press the belt midway between the motor and the door. It should deflect about ½ inch with moderate pressure. If it sags more than that, it’s too loose.
Step 4: Adjust the Belt Tension
- Use your wrench to turn the tensioning nut clockwise to tighten the belt.
- Make small adjustments—about a ¼ turn at a time.
- After each adjustment, check the belt tension by pressing it again.
⚠️ Important: Do not overtighten. A belt that is too tight can cause motor strain and rail damage.
Step 5: Plug In and Test
Once you’re satisfied with the tension:
- Plug the unit back in.
- Open and close the door a few times to verify smooth operation.
- Listen for grinding, jerking, or slipping noises. If present, recheck the tension.
Signs You Need to Tighten the Belt on a B503 Chamberlain Garage Door Opener
Some signs that indicate it’s time to tighten the belt include:
- The belt visibly sags or hangs
- The door hesitates or reverses before reaching the top or bottom
- You hear squeaking, clicking, or rattling
- The door moves unevenly or shakes during travel
- The garage door opener seems to be working harder than usual
Addressing these symptoms early can prevent more serious issues like motor burnout or gear damage.
How Often Should You Check the Belt?
It’s a good idea to inspect and, if necessary, tighten the belt every 6–12 months. You should also check after:
- Extreme weather changes (heat or cold can affect belt elasticity)
- A power outage or electrical surge
- You’ve added or removed door insulation, which changes the weight
Other Maintenance Tips for Your B503 Opener
While you’re tightening the belt, take a few extra minutes to perform some basic maintenance that can extend the life of your opener:
- Lubricate the rail and rollers (but never the belt itself)
- Inspect the safety sensors for dust and misalignment
- Check the backup battery if equipped
- Reprogram remotes or keypads if needed
What If Tightening Doesn’t Solve the Problem?
If you’ve adjusted the tension but still experience issues, consider the following:
- The belt may be worn or frayed and needs replacement
- The tensioning nut or bracket might be damaged
- There could be an issue with the gear and sprocket assembly
- The trolley might be misaligned or obstructed
In these cases, it’s worth contacting Chamberlain support or hiring a garage door technician.
Belt Drive vs. Chain Drive: Why Belt Tension Is Different
Compared to chain-driven openers, belt drives like the B503:
- Operate more quietly
- Require more frequent tension checks
- Offer smoother performance but are more sensitive to slack
Chain drives have more “give” and can tolerate slight looseness, while belt drives demand more precision in tensioning.
How to Replace the Belt on a B503 (If Needed)
If your belt is damaged beyond tightening:
- Purchase a Chamberlain-compatible replacement belt for the B503.
- Disconnect power and remove the old belt from the trolley and pulley.
- Feed the new belt into place, ensuring proper alignment with the gear.
- Tighten the belt using the steps above.
Conclusion: Maintain Peak Performance by Learning How to Tighten the Belt on a B503 Chamberlain Garage Door Opener
A little maintenance goes a long way. Knowing how to tighten the belt on a B503 Chamberlain garage door opener will help you enjoy:
- Smooth, quiet operation
- Prolonged system life
- Reduced repair costs
- Increased safety for your home
Whether you’re a DIY enthusiast or a first-time homeowner, following these steps will keep your garage door running like new.
