Setting Stops and Force on a Chamberlain Garage Door Opener for Optimal Performance and Safety

A well-functioning garage door opener is essential for the safety, convenience, and security of your home. When it comes to Chamberlain garage door openers, two critical settings play a major role in how smoothly and safely your garage door operates: stops and force. Properly setting stops and force on a Chamberlain garage door opener ensures the door opens and closes to the right positions without straining the motor or causing damage to the door or opener components.

In this detailed guide, we will walk you through the importance of these settings, how to adjust them correctly, and tips to maintain your Chamberlain garage door opener’s optimal performance. Whether you’re installing a new unit or troubleshooting your existing opener, mastering stops and force settings is a must for any garage owner.

Read too: Chamberlain 1/2 HP Heavy-Duty Chain Drive Garage Door Opener D2101: Reliable and Durable Solution for Your Garage

What Are Stops and Force on a Garage Door Opener?

Before diving into the adjustments, it’s important to understand what these terms mean and why they matter:

Stops: These define the points where your garage door fully opens and fully closes. The opener needs to know these limits to avoid over-traveling and potentially damaging the door or opener mechanism. Proper stops ensure the door stops exactly where it should.
Force: This setting controls how much power the opener uses to move the door. It regulates the amount of effort the motor applies when opening or closing. Too much force can cause damage or pose safety risks, while too little force might prevent the door from operating smoothly or fully.

Together, stops and force settings help protect your garage door system from mechanical stress, reduce wear and tear, and enhance safety by preventing the door from forcing open or closed against obstructions.

Setting Stops And Force On A Chamberlain Garage Door Opener – Step-by-Step Instructions

Adjusting the stops and force on your Chamberlain garage door opener might feel intimidating, but it’s a straightforward process once you understand the steps and have the right tools.

Step 1: Prepare Your Garage Door Opener

Ensure the garage door is closed completely.
Unplug the opener or turn off the power for safety before making manual adjustments if necessary.
Locate the control panel or control board on your Chamberlain opener, which typically has buttons or dials for programming stops and force.

Step 2: Enter Programming Mode

Press and hold the Learn button on the opener motor until the indicator light blinks or stays on.
This signals the unit is ready to accept stop and force settings adjustments.

Step 3: Setting the Travel Stops

Press the button for Up travel adjustment (often labeled or described in the manual).
Manually raise the door to the fully open position or use the remote control to open it slowly until the door reaches the desired height.
Press the Set or Learn button again to save the up stop.
Repeat this process for the Down travel stop: lower the door slowly to its fully closed position and press Set or Learn to save.

Step 4: Adjusting the Force Settings

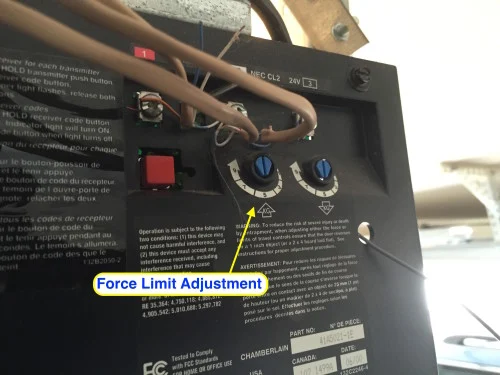

Access the force adjustment buttons or dials, which may be marked as Up Force and Down Force.
Begin with a moderate force setting, often recommended in the user manual.
Test the door operation by opening and closing it. If the door struggles to move, increase the force gradually. If the door slams or continues past the stops, reduce the force accordingly.
Safety sensors must detect obstructions and reverse the door if the force is too high; fine-tuning prevents unnecessary reversals or accidents.

Step 5: Test and Fine-Tune

After saving your settings, test the garage door multiple times.
Observe if the door stops precisely at the open and closed positions without extra force or hesitation.
Make small adjustments to the force and stops as necessary for smooth and safe operation.

Common Issues Related to Improper Stops and Force Settings

Improperly set stops and force can lead to several problems:

Door doesn’t fully open or close: This may be due to incorrect travel stops or insufficient force.
Opener motor runs but door doesn’t move: Force might be too low.
Door slams shut or forces past limits: Force set too high or stops not properly programmed.
Garage door reverses unexpectedly: Force settings too sensitive or safety sensors triggered by excessive force.
Increased wear on opener parts: Over-travel or excessive force can strain components, reducing lifespan.

Addressing these issues promptly by setting stops and force correctly can save costly repairs down the line.

Safety Considerations When Setting Stops and Force

Garage doors are heavy and can cause injury or damage if they malfunction. Always keep safety top of mind:

Never adjust stops or force without fully understanding your specific Chamberlain model’s instructions.
Keep hands and fingers away from moving parts during testing and adjustment.
Ensure safety sensors are clean, aligned, and functioning to prevent accidents.
If unsure, consult a professional technician to avoid injury or damage.

Benefits of Properly Setting Stops and Force

When stops and force are set correctly, you benefit from:

Smooth and quiet operation that prolongs the life of your garage door opener.
Enhanced safety for you, your family, and your belongings.
Energy efficiency by reducing unnecessary motor strain.
Improved security as the door reliably closes and locks in place.

Tips for Maintaining Your Chamberlain Garage Door Opener

Regularly inspect and clean the garage door tracks and sensors.
Lubricate moving parts according to manufacturer recommendations.
Periodically retest stops and force settings, especially after extreme weather or after servicing.
Keep your opener’s firmware updated if applicable.
Replace worn parts promptly to maintain proper balance and reduce force requirements.

Conclusion

Knowing how to set stops and force on a Chamberlain garage door opener is vital for anyone who wants reliable, safe, and efficient garage door operation. Whether you are installing a new opener or fine-tuning an existing one, these settings help ensure your door opens and closes properly without damaging the motor or risking safety.

By following the step-by-step instructions, addressing common issues, and applying best maintenance practices, you can enjoy the full benefits of your Chamberlain garage door opener and protect your investment for years to come.
