If you’ve ever dreamed of pulling into your driveway and opening your garage door without fumbling for a remote, you’re in luck. The 2016 Ford Mustang comes equipped with HomeLink, a built-in garage door control system that works beautifully with most major brands—including Chamberlain.
In this comprehensive guide, we’ll walk you through how to program Chamberlain garage door opener with 2016 Ford Mustang HomeLink. From prepping your vehicle to syncing it with your garage system, everything you need to know is covered here.
What is HomeLink and Why Use It With Your Mustang?

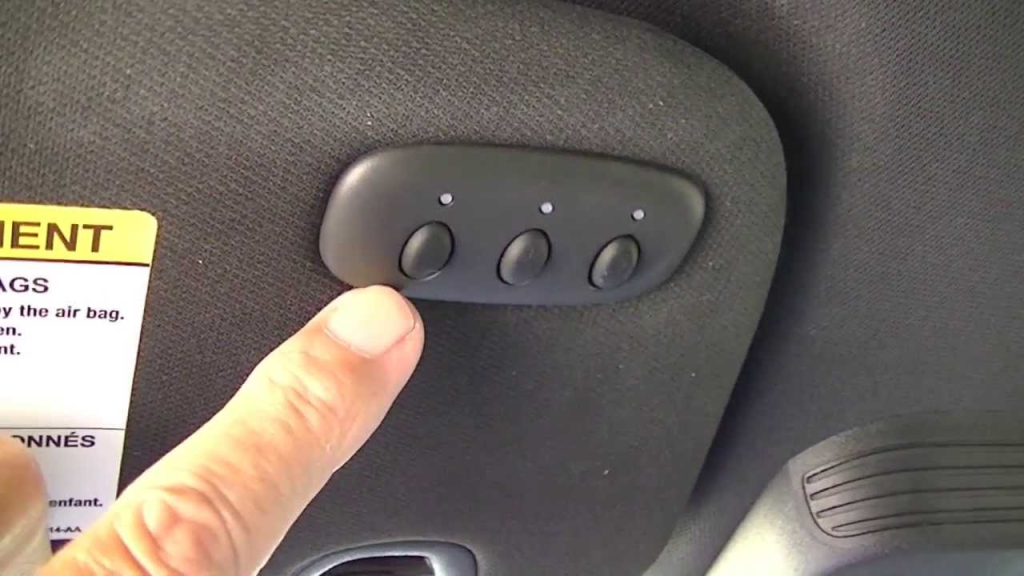

HomeLink is an integrated, wireless control system found in many modern vehicles, including the 2016 Ford Mustang. It allows you to operate garage doors, gates, and even home lighting systems, all from the convenience of a button on your car’s visor or overhead console.
Read too: How Many Remotes Can A Chamberlain Garage Door Opener Have? Understaanding the Limits and Options
Pairing your Mustang’s HomeLink system with a Chamberlain garage door opener can significantly improve convenience and safety. No more carrying around bulky remotes or worrying about battery failures—your garage access is now built into your car.
Requirements for Programming HomeLink with Chamberlain
Before you begin to program Chamberlain garage door opener with 2016 Ford Mustang HomeLink, make sure you have the following:
Vehicle:
- 2016 Ford Mustang with a functioning HomeLink system
Garage Door Opener:
- Chamberlain brand opener (compatible models usually include Security+, Security+ 2.0, and MyQ)
- The motor unit must be accessible (you may need a ladder)
Remote:
- The original handheld Chamberlain remote (may be required during programming)
Other:
- A ladder (to reach the “Learn” button on the garage opener)
- Your vehicle parked near the garage, engine turned on or in accessory mode
Step-by-Step: How to Program Chamberlain Garage Door Opener With 2016 Ford Mustang Homelink
Follow this easy-to-understand walkthrough to connect your Mustang’s HomeLink system with your Chamberlain garage opener.
Step 1: Clear Out Existing HomeLink Settings (Optional)
If you’ve previously programmed the HomeLink system in your Mustang, clear it first to avoid conflicts.
- Turn on the ignition without starting the car.
- Press and hold the two outer HomeLink buttons.
- Keep holding until the indicator light begins to flash rapidly (usually takes about 20 seconds).
- Release the buttons.
Note: This step erases all previous HomeLink settings in your car.
Step 2: Train HomeLink With Your Chamberlain Remote
This is the step where you pair the HomeLink buttons with your Chamberlain remote control.
- Hold your Chamberlain remote 1–3 inches away from the HomeLink buttons on your Mustang’s visor.
- Simultaneously press and hold both the remote button and the desired HomeLink button.
- Hold both buttons until the HomeLink indicator light changes from slow blinking to either:
- Rapid blinking (for fixed code systems)
- Solid light or two slow blinks (for rolling code systems)
- Release both buttons.
Step 3: Sync With the Chamberlain Opener (for Rolling Code Models)
If your Chamberlain opener uses rolling code technology (like Security+ or Security+ 2.0), you’ll need to complete this step to finish the programming.
- Locate the “Learn” or “Smart” button on your Chamberlain opener. It’s usually on the rear or side of the motor unit, often near the antenna.
- Press and release the Learn button. You’ll typically have 30 seconds to complete the next step.
- Within 30 seconds, go back to your Mustang and press the programmed HomeLink button three times (hold for 2 seconds each press).
- The garage door should begin to move, confirming the setup was successful.
Tip: If your door doesn’t move after the third press, repeat the process to ensure all signals are synced correctly.
How to Know If You Have Rolling Code or Fixed Code
It’s important to determine what kind of signal your Chamberlain opener uses. Most models made after 1996 use rolling code, which changes the access code every time the remote is used for added security.
To Check:
- Look for a “Learn” or “Smart” button on the garage door opener.
- If the button is colored (e.g., purple, red, yellow), it’s usually a rolling code model.
- If your remote uses DIP switches, it’s likely a fixed code system.
Troubleshooting Tips When Programming Fails
Even when following all the steps, sometimes the system doesn’t respond on the first try. If your Mustang doesn’t successfully program to your Chamberlain garage door opener, try the following:
1. Double-Check Remote Battery
Weak remote batteries can result in an incomplete signal transfer. Try replacing the battery before reprogramming.
2. Reboot the Garage Opener
Unplug the Chamberlain opener for 30 seconds and plug it back in. Then retry the programming sequence.
3. Clear HomeLink Again
If the programming fails, reset the HomeLink system again using the steps from Step 1 before trying again.
4. Check the Range
Make sure your Mustang is parked within 20 feet of the garage door opener. If you’re too far, the signal may not transmit correctly.
5. Professional Assistance
If problems persist, consider contacting Chamberlain or a professional garage door technician. Ford dealerships may also assist with HomeLink configuration.
Benefits of Using HomeLink With Your Garage Opener
Syncing your 2016 Ford Mustang’s HomeLink system with your Chamberlain garage opener has practical and aesthetic advantages:
- Streamlined Design: No more dangling remotes on your visor.
- Built-in Convenience: Access your garage with just the touch of a button.
- Enhanced Security: Less chance of remote theft or loss.
- Multiple Device Support: HomeLink can support up to three devices (e.g., garage doors, gates, or home lighting).
Compatible Chamberlain Models for 2016 Mustang HomeLink
Chamberlain’s broad product line mostly supports HomeLink integration. The most common compatible models include:
- Chamberlain B970, B550, C870
- Security+ and Security+ 2.0
- MyQ-enabled systems (with or without a bridge module)
Note: Some MyQ systems may require a HomeLink Compatibility Bridge if your car’s software version is outdated or doesn’t natively support Security+ 2.0.
When You May Need a HomeLink Compatibility Bridge
If your Chamberlain system is MyQ or Security+ 2.0 and the above steps don’t work, you might need the HomeLink Repeater Kit or Compatibility Bridge.
How to Know:
- Your garage door opener does not respond to HomeLink even after proper setup.
- You’ve confirmed rolling code compatibility and used a fresh remote.
- You have a newer garage door opener with enhanced encryption.
These kits are available from Chamberlain or through HomeLink directly and are easy to install.
Conclusion: Seamless Integration With Mustang and Chamberlain
Programming your 2016 Ford Mustang’s HomeLink with a Chamberlain garage door opener enhances your driving and home experience with added ease and security. With just a few steps, you can replace your handheld garage remote with something sleeker, smarter, and integrated into your car’s interior.
The steps to program Chamberlain garage door opener with 2016 Ford Mustang HomeLink are straightforward and require no technical background. Whether you’re using a fixed or rolling code system, this DIY task saves time, reduces clutter, and adds convenience every time you pull into your driveway.
So, go ahead—ditch the remote and let your Mustang do the work!
