If you’re a homeowner or DIY enthusiast, you know how important it is to have your Chamberlain Model C205 Garage Door Opener in top working condition. Proper adjustments not only extend the life of your garage door opener but also ensure that your garage door operates smoothly and quietly. This article provides a detailed guide on Picture of Adjustments on Chamberlain Model C205 Garage Door Opener, including step-by-step instructions on how to make adjustments, what to look for, and troubleshooting tips.
Understanding the Chamberlain Model C205 Garage Door Opener
The Chamberlain Model C205 Garage Door Opener is a popular choice for homeowners due to its reliability, quiet operation, and ease of use. This model is equipped with features like a heavy-duty motor, security protocols, and smooth performance. However, like any mechanical device, it requires regular adjustments to maintain optimal performance.
Read too: How Many Remotes Can A Chamberlain Garage Door Opener Have? Understaanding the Limits and Options
Before diving into specific adjustments, it’s crucial to understand the basic components of the Chamberlain Model C205:
- Motor Unit: Powers the opening and closing of the door.
- Drive Mechanism: Could be chain-driven, belt-driven, or screw-driven.
- Safety Sensors: Prevent the door from closing if an obstruction is detected.
- Remote Control: Allows for easy access to open and close the door remotely.
- Wall Control: Provides manual control over the garage door from inside the garage.
Each of these components must be correctly adjusted for the opener to function properly. Let’s explore the most common adjustments required for the Chamberlain Model C205 Garage Door Opener.
Picture Of Adjustments On Chamberlain Model C205 Garage Door Opener
Having the correct picture of adjustments on Chamberlain Model C205 garage door opener can help you better visualize the process and ensure you’re making the correct adjustments. Below are the most important adjustments to consider, each explained in detail:
1. Travel Limit Adjustment
The travel limit controls how far the garage door opens and closes. If your door stops too early or doesn’t close completely, adjusting the travel limit is necessary. Incorrect travel limit settings can cause your door to reverse or stop before fully opening or closing.
Steps to Adjust Travel Limit:
- Locate the travel limit settings on the motor unit. These are typically two small screws labeled Up and Down.
- If the door doesn’t open enough, turn the Up screw clockwise.
- If the door doesn’t close all the way, adjust the Down screw in a clockwise direction.
- Use a ladder to test the door’s movement after each adjustment.
Adjusting the travel limits ensures the door opens and closes completely and prevents the door from stalling or reversing unexpectedly.
2. Force Adjustment
The force adjustment controls how much power the opener uses to open or close the garage door. If the door is too heavy or requires excessive force to open, you may need to adjust the force settings.
How to Adjust Force Settings:
- On the Chamberlain Model C205, look for the Force Adjustment dials on the opener unit.
- These dials control both the upward and downward force. Turn the dials clockwise to increase the force and counterclockwise to decrease it.
- After making adjustments, test the door’s movement. The door should open and close smoothly without excessive force.
By properly adjusting the force, you ensure the opener doesn’t strain the motor, preventing potential damage and extending the life of the opener.
3. Chain or Belt Tension Adjustment
The chain or belt tension is crucial for ensuring smooth operation of the opener. A loose or too-tight chain or belt can cause the door to move unevenly, make noise, or even fail to open or close correctly.
Steps to Adjust Chain/Belt Tension:
- First, locate the chain or belt tension adjustment screw on the motor unit.
- Use a wrench or screwdriver to turn the screw. If the chain or belt is too loose, tighten the tension screw. If it’s too tight, loosen it slightly.
- Test the door’s operation to ensure it opens and closes smoothly without any unusual sounds.
Proper tension is key to a well-functioning garage door opener, so be sure to check this regularly.
4. Safety Sensor Alignment
The safety sensors on the Chamberlain Model C205 are designed to prevent the door from closing if an obstruction is detected in the door’s path. If your garage door starts reversing when closing, or if the sensors blink continuously, the sensors may be misaligned.
How to Align Safety Sensors:
- Check that the safety sensors are free of debris or obstruction.
- If the sensors are misaligned, gently adjust the sensor brackets so that the sensors face each other directly.
- Ensure the sensor lights are solid and not blinking.
When properly aligned, these sensors keep your garage door functioning safely and securely.
5. Reprogramming Remotes and Keypads
If your remote control or keypad stops working or you want to add additional remotes to your system, you may need to reprogram them.
Steps to Reprogram Remote Control:

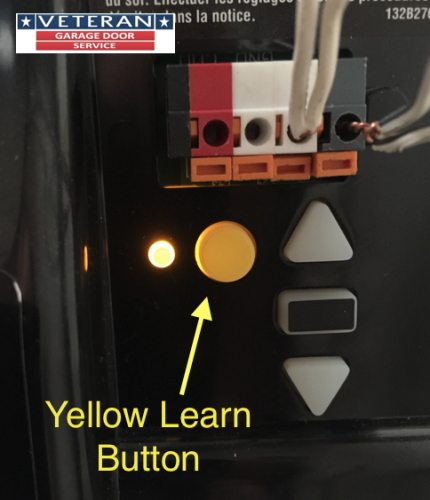

- On the motor unit, press and hold the Learn button until the indicator light turns on (usually 30 seconds).
- On the remote control, press and hold the desired button until the light on the motor unit blinks, indicating that the remote has been successfully programmed.
Similarly, you can follow the same procedure to program your keypad by pressing the Enter button after programming the code.
6. Lubrication of Moving Parts
To keep the Chamberlain Model C205 Garage Door Opener running quietly and efficiently, it’s important to lubricate the moving parts regularly. This reduces friction and prevents wear and tear on key components like the chain, rails, and rollers.
Steps to Lubricate:
- Use a garage door lubricant spray or silicone-based lubricant.
- Spray the lubricant on the chain or belt, rollers, and hinges.
- Wipe off any excess lubricant to prevent buildup.
Lubricating your garage door opener reduces noise and extends its lifespan, so be sure to do this every 6 months or as needed.
Troubleshooting Common Issues on the Chamberlain Model C205
Here are some common problems and solutions for the Chamberlain Model C205 Garage Door Opener:
- Problem: The garage door doesn’t open/close completely
Solution: Adjust the travel limits as discussed above. - Problem: The door moves slowly or unevenly
Solution: Check and adjust the chain or belt tension. - Problem: The garage door reverses unexpectedly
Solution: Re-align the safety sensors and test again. - Problem: The remote or keypad doesn’t work
Solution: Reprogram the remote or keypad.
Where to Find the Picture of Adjustments on Chamberlain Model C205 Garage Door Opener
Having a visual reference is helpful when making adjustments to your Chamberlain Model C205 Garage Door Opener. To get a picture of adjustments on Chamberlain Model C205 Garage Door Opener, consider:
- User Manual: The manual typically includes diagrams and instructions for making adjustments.
- Online Resources: Visit the official Chamberlain website for visual guides, instructional videos, or diagrams.
- YouTube: Many DIY enthusiasts share videos of adjustments and repairs on models like the C205.
- Customer Support: If in doubt, you can always reach out to Chamberlain’s customer support for visual assistance.
Conclusion
Properly adjusting your Chamberlain Model C205 Garage Door Opener can significantly improve its performance, extend its lifespan, and ensure smooth operation. Whether it’s adjusting the travel limits, reprogramming the remote, or aligning the safety sensors, maintaining your opener is essential for long-term reliability. With a picture of adjustments on Chamberlain Model C205 garage door opener, you’ll have a clearer understanding of how to perform these tasks effectively.
By following the steps outlined in this article, you can confidently adjust and maintain your Chamberlain Model C205 opener, keeping it in optimal working condition for years to come.
