If you own a Chamberlain Power Drive Heavy Duty Garage Door Opener, having a comprehensive understanding of its manual is essential for proper installation, usage, troubleshooting, and maintenance. The Chamberlain Power Drive Heavy Duty Garage Door Opener Manual serves as the definitive guide to help you maximize the performance and lifespan of your garage door opener.
In this article, we will explore everything about the Chamberlain Power Drive Heavy Duty Garage Door Opener Manual, including its key sections, step-by-step installation instructions, common troubleshooting tips, and maintenance advice. Whether you’re a new owner or an experienced user, this guide will ensure you get the most out of your heavy-duty garage door opener.
Read too: How Many Remotes Can A Chamberlain Garage Door Opener Have? Understaanding the Limits and Options
What Is the Chamberlain Power Drive Heavy Duty Garage Door Opener Manual?
The Chamberlain Power Drive Heavy Duty Garage Door Opener Manual is the official instruction booklet provided by Chamberlain that contains detailed information on the setup, operation, and care of their heavy-duty garage door openers. This manual is designed to help users:
- Understand product features and specifications.
- Follow correct installation steps.
- Configure settings, including remote controls and safety sensors.
- Troubleshoot common issues.
- Perform routine maintenance.
- Utilize advanced features such as smart home integration.
The manual is a vital resource that ensures safety and efficiency when operating the garage door opener.

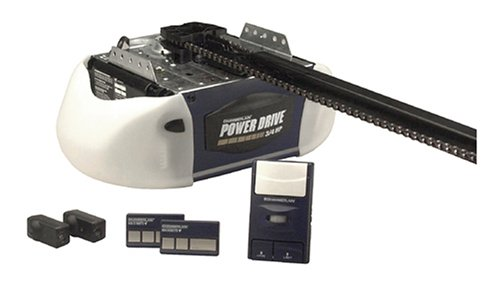

Key Features Highlighted in the Chamberlain Power Drive Heavy Duty Garage Door Opener Manual
Before diving into the manual’s contents, it’s important to be aware of the main features of the Chamberlain Power Drive Heavy Duty Garage Door Opener as detailed in the manual:
- Powerful Motor: Equipped with a robust motor designed to handle heavy garage doors up to 500 lbs or more.
- Belt Drive System: Ensures quiet and smooth operation, ideal for garages attached to living spaces.
- MyQ Technology: Allows remote operation and monitoring via smartphone apps.
- Safety Sensors: Prevents accidents by stopping and reversing the door when obstacles are detected.
- Motion Detection Lighting: Automatically turns on lights when motion is detected near the garage.
- Battery Backup Options: Maintains functionality during power outages (depending on model).
The manual explains how each feature operates and how to best utilize them.
Chamberlain Power Drive Heavy Duty Garage Door Opener Manual: Step-by-Step Installation
One of the most critical sections in the Chamberlain Power Drive Heavy Duty Garage Door Opener Manual is the installation guide. Proper installation ensures optimal performance and safety. Below is a summarized version of the installation process as per the manual:
Step 1: Gather Tools and Prepare the Garage
Before beginning, clear the garage workspace and make sure the door can move freely by hand. Tools you’ll typically need include:
- Screwdrivers (Phillips and flathead)
- Drill with bits
- Wrenches
- Ladder
- Level
- Tape measure
Step 2: Assemble the Rail and Attach to Motor Unit
- Connect the rail pieces and attach them securely to the motor unit.
- The manual provides specific torque specifications for bolts to ensure safety.
Step 3: Mount the Motor Unit
- Using the ceiling mounting bracket, secure the motor unit to the garage ceiling.
- Adjust placement so the opener is centered above the garage door.
Step 4: Attach the Door Arm and Trolley
- Connect the door arm from the trolley to the garage door bracket.
- Ensure all connections are tight but allow for smooth movement.
Step 5: Install Safety Sensors
- Position the safety sensors on each side of the garage door, no more than 6 inches above the ground.
- Align sensors so they face each other directly without obstruction.
Step 6: Program Remotes and Connect MyQ App
- Follow the manual’s step-by-step instructions to sync remote controls.
- Set up the MyQ system for smartphone control, including Wi-Fi connection.
Step 7: Test the System
- Open and close the door using remotes and smartphone app.
- Verify the safety sensors and auto-reverse function work correctly.
Troubleshooting Tips from the Chamberlain Power Drive Heavy Duty Garage Door Opener Manual
Even with proper installation and maintenance, occasional issues may arise. The manual provides troubleshooting steps for common problems such as:
Problem: Door Does Not Open or Close
- Check power source and ensure the motor unit is plugged in.
- Inspect remote batteries or try resetting remotes.
- Verify safety sensor alignment and clean sensor lenses.
Problem: Door Reverses Suddenly
- Check for obstructions on the door path.
- Ensure sensors are clean and aligned.
- Adjust force settings on the motor (instructions included in the manual).
Problem: Loud or Unusual Noises
- Inspect belt drive for wear or looseness.
- Lubricate moving parts per manual recommendations.
- Tighten any loose hardware or brackets.
Problem: MyQ App Connectivity Issues
- Confirm Wi-Fi signal strength in garage.
- Restart router and opener.
- Update app to latest version.
Maintenance Guidelines According to the Chamberlain Power Drive Heavy Duty Garage Door Opener Manual
Routine maintenance is crucial for the longevity and reliable operation of your Chamberlain Power Drive Heavy Duty Garage Door Opener. The manual recommends the following practices:
- Monthly Sensor Checks: Clean and align safety sensors to prevent false stops.
- Lubrication: Apply lubricant to rollers, hinges, and belt drive as specified in the manual.
- Hardware Inspection: Tighten bolts, nuts, and brackets regularly.
- Door Balance Test: Disconnect the opener and manually move the door halfway. It should stay in place; if not, the door may need professional adjustment.
- Battery Backup Maintenance: Replace batteries as recommended if your model supports backup power.
Following these maintenance steps helps prevent costly repairs and keeps your garage door opener working smoothly.
Safety Precautions From the Manual
The Chamberlain Power Drive Heavy Duty Garage Door Opener Manual emphasizes safety throughout:
- Keep children and pets away during installation and operation.
- Never disable or bypass safety sensors.
- Use professional help for door spring adjustments to avoid injury.
- Ensure emergency release mechanisms are functional.
Adhering to these safety guidelines protects users and ensures proper operation.
Why You Should Read the Chamberlain Power Drive Heavy Duty Garage Door Opener Manual Thoroughly
While it might be tempting to skip the manual, reading it thoroughly can save you time, frustration, and money. The manual:
- Provides detailed diagrams and explanations.
- Offers troubleshooting advice that can avoid unnecessary service calls.
- Explains features you might not discover on your own.
- Ensures installation and operation comply with safety standards.
For optimal performance and peace of mind, the manual is an indispensable resource.
Conclusion
The Chamberlain Power Drive Heavy Duty Garage Door Opener Manual is a comprehensive guide essential for anyone owning or installing this powerful and reliable garage door opener. From installation to troubleshooting and maintenance, this manual helps users maximize their investment while maintaining safety and convenience.
If you’re planning to install, repair, or upgrade your Chamberlain Power Drive garage door opener, keeping this manual handy and understanding its contents will ensure smooth and trouble-free operation for years to come.
