Chamberlain is a trusted name in home automation and garage door openers. With advanced features like MyQ smart technology, automatic lighting, and safety sensors, Chamberlain products are designed to provide both convenience and peace of mind. However, like any electronic device, your garage door opener may encounter occasional errors—and one of the most commonly reported is the Chamberlain Garage Door Opener Motor Control Error Code 1-5.
If your opener is flashing this 1-5 error code, don’t panic. This code is simply a built-in diagnostic tool alerting you that something is preventing the motor from operating normally. In this article, we’ll explain what Error Code 1-5 means, walk you through how to troubleshoot it, and offer detailed repair tips so you can restore your garage door system to full functionality.
Understanding Chamberlain Garage Door Opener Error Codes
Modern Chamberlain garage door openers—especially models with LED diagnostic panels or wall control displays—are equipped to display error codes to help users and technicians quickly identify the problem. These codes usually appear as a sequence of flashes or as digital messages on smart panels.
Read too: How Many Remotes Can A Chamberlain Garage Door Opener Have? Understaanding the Limits and Options
The Motor Control Error Code 1-5 is one of the more serious codes, and it’s directly related to motor performance and system protection. If not resolved, it may prevent your garage door from operating entirely.
What Does Chamberlain Garage Door Opener Motor Control Error Code 1-5 Mean?
Definition of Error Code 1-5
The 1-5 error code represents:

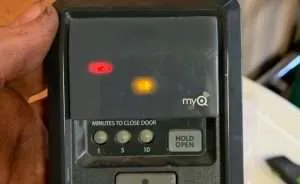

1 UP flash followed by 5 DOWN flashes on the LED of the motor unit.
This specific error code refers to a “Motor Control Fault” or “Overcurrent Protection Triggered” condition. It usually indicates that:
- The motor is experiencing a resistance overload
- The door is too heavy or obstructed
- There’s a binding issue in the door mechanism
- The motor control board may be damaged or malfunctioning
Chamberlain openers trigger this safety error to protect the motor and prevent further mechanical damage or overheating.
Chamberlain Garage Door Opener Motor Control Error Code 1-5 – Step-by-Step Troubleshooting Guide
Fixing the Chamberlain Garage Door Opener Motor Control Error Code 1-5 requires a methodical approach. The problem could stem from a physical obstruction, a wiring fault, or even internal motor damage.
Step 1: Unplug the Opener and Inspect the Door
Start by disconnecting the power to the opener.
- Manually lift and lower the garage door.
- Check for resistance, jerky motion, or sticking points.
- Inspect the tracks, rollers, and hinges for damage or debris.
- Lubricate moving parts with garage-grade silicone lubricant.
- Ensure the door is balanced—an unbalanced door can strain the motor.
If the door is hard to open manually, the motor is likely being overloaded during operation.
Step 2: Check for Obstructions
Look for items that might be blocking the door’s movement:
- Tools or bikes near the base of the door
- Bent or misaligned rails
- Dirt or small objects stuck in the track
Obstructions can cause the opener to work harder, triggering the 1-5 fault.
Step 3: Inspect and Test the Springs
Broken or worn torsion or extension springs can drastically increase the load on the motor. This may cause the system to throw the Motor Control Error Code 1-5.
Warning: Spring inspection and replacement can be dangerous. If a spring appears broken, call a professional technician.
Step 4: Examine the Wiring and Power Supply
Faulty or loose wiring could cause short circuits or inconsistent motor power delivery.
- Ensure the motor wiring harness is securely connected.
- Check for burned or corroded wires inside the control housing.
- Plug the opener into a dedicated, grounded power outlet—not a shared circuit with other high-load appliances.
Power instability can trigger safety shutdowns in the control board.
Step 5: Reset the Opener
After inspection, try a system reset:
- Unplug the opener from the power outlet.
- Wait 30–60 seconds.
- Reconnect power and test the door using the wall control panel.
This may clear temporary error memory from the motor control board.
Step 6: Test Without the Door
To isolate whether the motor or the door mechanism is causing the issue:
- Disconnect the trolley from the door (usually by pulling the emergency release cord).
- Run the opener using the wall control or remote.
- If the motor runs smoothly without the door attached, the problem lies in the door’s movement.
- If the error still occurs, the issue is internal to the opener unit.
Step 7: Inspect the Motor Control Board
If all mechanical checks pass and the error persists, the motor control board (logic board) may be failing.
- Signs of a failing board:
- Burn marks
- Visible component damage
- Strange noises during operation
- Error persists despite resetting
Chamberlain sells replacement motor boards for most opener models (e.g., B550, B970, C870, etc.). You’ll need to match your model number exactly to get the right part.
Step 8: Contact Chamberlain Support or Hire a Technician
If you’re unable to resolve the Chamberlain Garage Door Opener Motor Control Error Code 1-5 after the steps above, contact Chamberlain customer support or hire a certified garage door technician.
You can reach Chamberlain support via:
- Website: www.chamberlain.com
- Phone: Listed on your opener’s manual or their support page
- Live chat and product registration support available online
Preventing Future Motor Control Errors
To avoid encountering the Motor Control Error Code 1-5 again, follow these preventive tips:
✅ Regular Maintenance
- Lubricate all moving parts every 3–6 months
- Clean rails and tracks
- Tighten loose screws and hinges
✅ Balance and Test the Door
- Perform a balance test quarterly
- Ensure the door lifts smoothly with minimal force
✅ Avoid Overloading
- Do not attach additional weights to the garage door
- Don’t use the opener to “force” a stuck door
✅ Protect the Motor from Electrical Surges
- Use a garage-rated surge protector
- Avoid plugging into shared circuits with appliances like fridges or air compressors
Compatible Chamberlain Models Affected by Code 1-5
Many popular Chamberlain models can display Motor Control Error Code 1-5, especially those equipped with Security+ 2.0 and MyQ technology. These include:
- Chamberlain B970, B550, B1381
- Chamberlain C870, RJO70
- Chamberlain Whisper Drive models
- Smart garage door openers with LED diagnostics
Always check your model number on the back of the motor unit or in the user manual.
When to Replace the Garage Door Opener
If your opener is:
- Over 10–15 years old
- Experiencing recurring motor errors
- Making unusual noises
- Slower or inconsistent in operation
…it may be time to replace the unit entirely. Newer Chamberlain openers offer:
- Wi-Fi connectivity
- Battery backup
- Improved safety sensors
- Quieter DC motors
Final Thoughts: Don’t Ignore Chamberlain Motor Error Code 1-5
The Chamberlain Garage Door Opener Motor Control Error Code 1-5 might seem intimidating, but with the right steps, it can often be resolved without replacing your entire unit.
By following this guide to inspect the motor, door, power source, and logic board, you can save time and money—and prevent long-term damage to your system. Chamberlain’s diagnostic tools are designed to protect both users and equipment, so don’t ignore these warning signs.
If all else fails, never hesitate to contact a professional or Chamberlain support to ensure your system is running safely and efficiently.
