If you’re standing in front of your garage and your Chamberlain Garage Door Opener Model 2000Sdr opener is not working, you’re not alone. Garage door openers are incredibly convenient—until the moment they stop functioning. Whether your door doesn’t respond to the remote, only opens halfway, or doesn’t move at all, there are several common reasons why this might happen.
This guide is designed to help homeowners troubleshoot, diagnose, and potentially fix problems with the Chamberlain 2000Sdr garage door opener. We’ll walk you through the most likely issues, what tools you’ll need, how to reset your unit, when to call a pro, and tips for preventing future failures.
Read too: How Many Remotes Can A Chamberlain Garage Door Opener Have? Understaanding the Limits and Options
Let’s get started.

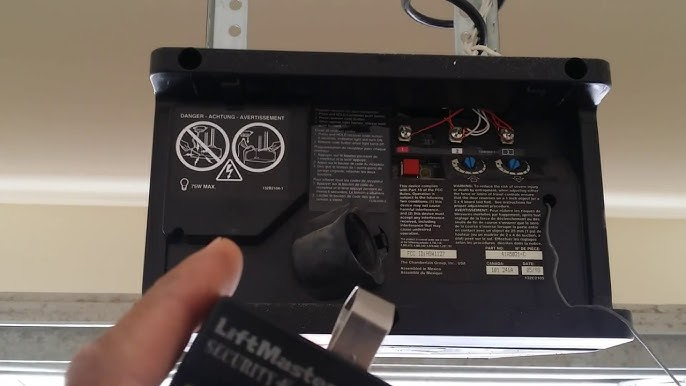

Understanding the Chamberlain Garage Door Opener Model 2000Sdr
The Chamberlain Model 2000Sdr is a legacy chain-drive garage door opener that has been around for decades. Known for its reliability, this unit features basic controls, a wall-mounted button, and remote compatibility. Despite its older design, many of these units are still in use today. However, as with all mechanical and electrical devices, age and wear eventually take their toll.
Common problems reported with this model include:
- No response from wall button or remote
- Motor hums but doesn’t move the door
- Light blinks but door doesn’t operate
- Door reverses before fully closing
Common Reasons Why the Chamberlain Garage Door Opener Model 2000Sdr Opener Is Not Working
Here are the top issues that may be causing your opener to stop working, and how to deal with each:
1. Power Supply Issues
First, always check the obvious.
- Is the power cord securely plugged in?
- Has a circuit breaker tripped or fuse blown?
- Are there signs of burn marks or smells around the motor?
If the outlet is working and the unit still has no power, it could be an internal circuit board failure.
2. Non-Responsive Wall Switch or Remote
Try both the wall switch and the remote. If neither works:
- Check the wiring on the wall control panel
- Replace the batteries in the remote
- Reprogram the remote to sync it again with the opener
Sometimes, interference or miscommunication between the receiver and remote can cause operation failure.
3. Safety Sensor Misalignment
The safety reversing sensors at the bottom of the garage door tracks are critical. If these sensors are:
- Dirty
- Blocked
- Misaligned
… the door will not close, and you may hear a clicking sound or blinking lights. Cleaning and realigning the sensors can often solve this problem.
4. Drive Gear Wear or Failure
Over time, the plastic drive gear inside your Chamberlain 2000Sdr may wear out. Symptoms include:
- Motor sounds like it’s running, but the door doesn’t move
- You find white plastic shavings near the motor unit
Replacing the drive gear kit is a common repair and can often be done DIY.
Troubleshooting Chamberlain Garage Door Opener Model 2000Sdr Opener Not Working
If your Chamberlain Garage Door Opener Model 2000Sdr opener is not working, use this troubleshooting checklist before replacing the unit:
✅ Step 1: Check Power Supply
- Plug a lamp or another appliance into the outlet to test it
- Reset the breaker or replace the fuse if needed
✅ Step 2: Examine the Wall Button and Remote
- Open the wall switch and look for loose wires or corrosion
- Use a working spare remote to rule out a faulty one
- Reprogram the remote using the “Learn” button on the opener
✅ Step 3: Inspect the Safety Sensors
- Clean the sensors with a soft cloth
- Make sure they’re aligned—green and red lights should be solid, not blinking
- Check the wires connected to the sensors for damage
✅ Step 4: Look for Drive Gear Problems
- Unplug the unit
- Remove the housing cover
- If the gear is stripped or cracked, it will need to be replaced
✅ Step 5: Reset the Opener
- Locate the “Learn” button on the opener
- Hold it down until the LED light goes out (about 6 seconds)
- Reprogram remotes and keypads afterward
How to Replace the Drive Gear on a Chamberlain 2000Sdr
If a worn drive gear is the issue, here’s how to fix it:
Tools & Parts Needed:
- Chamberlain-compatible gear and sprocket kit
- Flathead screwdriver
- Phillips screwdriver
- Socket set
- White lithium grease
- Ladder
Replacement Steps:
- Unplug the opener
- Remove the outer casing
- Take off the old gear and replace with the new one
- Grease the gear assembly properly
- Reassemble the housing and test operation
If you’re not comfortable doing this, it’s best to hire a technician.
What If the Motor Hums But the Door Doesn’t Move?
This is often a sign of a jammed or stripped gear, or possibly a door track obstruction. Here’s how to isolate the issue:
- Disconnect the opener and try lifting the door manually
- If it’s difficult to move, the door springs or track may be the issue
- If the door moves freely but the opener doesn’t lift it, then it’s likely the drive mechanism
When Should You Replace the Opener Instead of Repairing It?
Your Chamberlain 2000Sdr is durable, but it may be time for a new one if:
- The unit is over 15–20 years old
- Replacement parts are hard to find
- You want smart features or quieter operation
- You’ve had multiple breakdowns recently
New models come with features like Wi-Fi control, LED lighting, quieter belt drives, and battery backup—all of which add convenience and safety.
Preventive Maintenance Tips
To keep your opener working smoothly and avoid issues in the future:
1. Lubricate Moving Parts
Use lithium-based garage door lubricant on:
- Hinges
- Rollers
- Tracks
- Drive gear
2. Clean and Align Sensors
Every few months, wipe the safety sensors and ensure they face each other squarely.
3. Check Balance of Door
Disconnect the opener and manually lift the door halfway. If it doesn’t stay in place, the springs need adjustment.
4. Test Auto-Reverse
Place a block under the door and close it. If the door doesn’t reverse upon contact, service is needed.
Frequently Asked Questions (FAQs)
Q: How do I reprogram my remote with the Chamberlain 2000Sdr?
A: Press and release the “Learn” button on the opener, then press the button on the remote. The LED light should blink to confirm pairing.
Q: What does it mean when my opener clicks but doesn’t open?
A: A clicking sound often indicates sensor misalignment, a bad capacitor, or a stripped gear.
Q: Is it safe to repair the gear by myself?
A: If you’re comfortable with tools, yes. But if the gear is connected to other failing components or electrical parts, it’s best to call a professional.
Q: Can a power surge damage the Chamberlain opener?
A: Yes. Power surges can damage the internal circuit board. Use a surge protector specifically designed for garage door openers.
Conclusion
Dealing with a Chamberlain Garage Door Opener Model 2000Sdr opener not working can be frustrating, especially if it happens when you least expect it. Fortunately, many common issues—like sensor problems, remote programming, or drive gear wear—can be identified and resolved with a bit of patience and the right tools.
Before rushing out to replace the entire opener, take time to troubleshoot. In many cases, a simple reset, realignment, or part replacement is all you need. And if your unit is nearing the end of its life cycle, now might be the time to explore modern replacements with smart technology and enhanced safety features.
Whether you’re fixing it yourself or hiring a pro, this guide should give you the clarity and confidence to handle whatever your Chamberlain 2000Sdr opener throws your way.
