Have you noticed your Chamberlain garage door opener lights flashing on wall control and aren’t sure what it means? Whether it’s a steady blink or an intermittent flash, these signals are your garage opener’s way of alerting you to something important. Ignoring them could lead to minor inconveniences or, in some cases, complete system failure.
In this comprehensive guide, we’ll explain why your Chamberlain garage door opener lights are flashing on wall control, what each flashing pattern typically means, how to fix the issue, and when you should call for help.
Read too: How Many Remotes Can A Chamberlain Garage Door Opener Have? Understaanding the Limits and Options
Understanding the Basics of Chamberlain Wall Control Systems

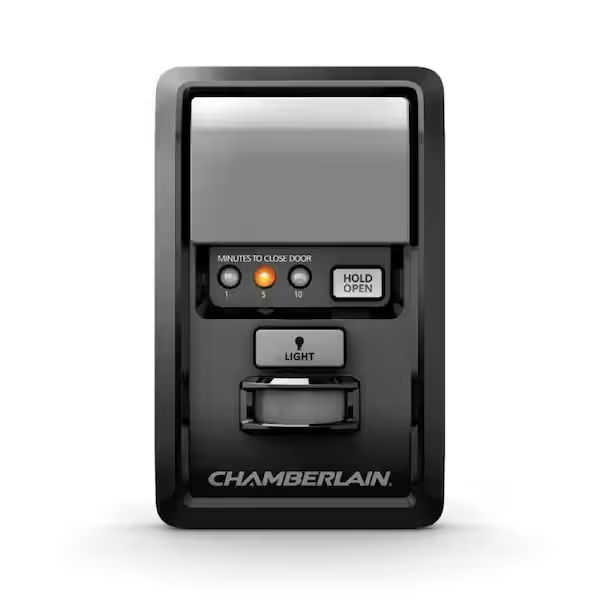

The wall control is more than just a button to open or close your garage door. It’s a smart communication hub that allows you to control the light, program remotes, adjust settings, and receive diagnostic alerts from the garage door opener.
When the indicator light on the wall control begins flashing, it usually means the system has detected a fault or is in a specific operating mode.
Common Reasons Why Chamberlain Garage Door Opener Lights Flash on Wall Control
Here are the most frequent causes behind flashing lights on your wall control:
1. Sensor Misalignment or Blockage
The most common issue is a misalignment of the safety reversing sensors (also known as photo-eyes) near the bottom of your garage door. If something blocks these sensors or if they become misaligned, the garage door won’t close—and the wall control will flash to alert you.
2. Lock Mode is Enabled
Many wall panels have a lock function that disables remote control access. When lock mode is turned on, the wall control will typically blink slowly to let you know that remotes won’t work until it’s disabled.
3. Wiring Issues
Faulty, frayed, or disconnected wires between the wall control and the opener’s main unit can cause intermittent or constant flashing. This may also cause the opener to stop responding entirely.
4. Temporary Power Disruption
After a power outage or surge, your wall control may blink as the system resets. In some cases, power loss can corrupt the logic board or cause communication errors between the opener and the wall unit.
5. Overheating or Circuit Board Failure
A blinking light can also be a sign of overheating or a damaged circuit board. If your opener has been behaving erratically, this could be a sign of an internal fault.
How to Interpret the Flashing Pattern
- Slow blinking every few seconds: Usually means lock mode is activated.
- Fast blinking while trying to close the door: Indicates sensor blockage or misalignment.
- Continuous blinking with no door response: Points to wiring issues or a faulty logic board.
- Blinking with beeping sounds: Often associated with battery backup systems trying to reconnect after a power outage.
Knowing the pattern helps identify the root problem more accurately.
Chamberlain Garage Door Opener Lights Flashing On Wall Control – Step-by-Step Troubleshooting Guide
Let’s walk through how to troubleshoot and fix the issue based on the pattern you’re observing.
Step 1: Check for Lock Mode Activation
Some Chamberlain models come with a “lock” or “vacation” mode button on the wall panel.
How to check and disable:
- Press and hold the “Lock” button for 3–5 seconds.
- Observe if the blinking stops.
- Try using the remote to operate the door.
✅ If the light stops blinking and the remote works again, the issue was lock mode.
Step 2: Inspect the Safety Reversing Sensors
Misaligned or obstructed sensors are often the cause of fast blinking and a non-responsive garage door.
What to look for:
- Dust or debris blocking the sensor lens
- Misalignment (LEDs on the sensors should be solid, not blinking)
- Loose wiring at the sensor connection points
How to fix:
- Clean both sensors with a dry cloth.
- Adjust until both sensor indicator lights are solid.
- Secure any loose wiring.
✅ If the wall control stops flashing once the sensors are aligned, the problem is solved.
Step 3: Examine Wall Control Wiring
If your wall control blinks continuously and doesn’t operate the door or light, it may have lost proper connection to the opener.
Steps to follow:
- Turn off power to the opener.
- Unscrew the wall panel.
- Check that the red and white wires are properly connected and not frayed or corroded.
- Reconnect and tighten wire terminals.
- Turn power back on and test the wall unit.
✅ Still flashing? Consider replacing the wire or calling a technician.
Step 4: Reset the Opener
Sometimes a power surge or logic board glitch causes communication problems. A reset can help.
To reset:
- Disconnect the opener from power for at least 60 seconds.
- Reconnect and test functionality.
- Press and hold the Learn button if you need to reprogram remotes.
✅ Flashing should stop if the issue was temporary.
Step 5: Check for Firmware Updates (Smart Models)
If your Chamberlain opener uses myQ technology, it may need a firmware update.
To check for updates:
- Open the myQ app on your phone.
- Go to device settings.
- Look for firmware update notifications.
✅ Keeping your firmware up-to-date can prevent blinking issues caused by communication errors.
When to Call a Professional
If you’ve tried all the above and your Chamberlain garage door opener lights are still flashing on wall control, it’s time to bring in an expert.
Call a technician if:
- Wires are clearly damaged
- Wall control is unresponsive even after reset
- The logic board shows signs of burning or failure
- The system won’t reset at all
Preventing Future Flashing Issues
✅ Regularly Clean and Align Sensors
Make a habit of cleaning your photo-eye sensors every few weeks, especially in dusty garages or during pollen season.
✅ Secure Wiring
Loose wires can cause intermittent blinking. Periodically inspect wire connections to ensure they remain tight.
✅ Avoid Power Surges
Use a surge protector for your garage opener to protect the logic board from voltage spikes.
✅ Test Wall Control Monthly
Once a month, test both the light and door functions to ensure everything is working smoothly.
FAQs: Chamberlain Garage Door Opener Lights Flashing on Wall Control
What does a blinking wall control light mean?
It usually means either a lock mode is activated, the safety sensors are blocked, or there’s a wiring/logic board issue.
Can I still open my garage door if the light is flashing?
Yes, if it’s lock mode or sensor-related, the wall panel may still function. However, it’s best to fix the issue to avoid further complications.
Will unplugging the opener stop the flashing?
Temporarily, yes. But if the root cause isn’t fixed, the flashing will return once power is restored.
Conclusion: Don’t Ignore Those Flashing Lights!
If you see your Chamberlain garage door opener lights flashing on wall control, it’s more than just an annoyance. It’s your opener trying to tell you something. Fortunately, most of the time it’s an easy fix — from resetting lock mode and cleaning the sensors to tightening some wires.
Stay proactive by regularly maintaining your system and responding to signals early. This will help ensure your Chamberlain garage door opener works smoothly and reliably for years to come.
