A garage door opener that doesn’t close or open all the way can be frustrating—and sometimes dangerous. That’s why knowing how to properly perform a Chamberlain 1 2 Hp Garage Door Opener Travel Adjustment is essential for homeowners and DIYers alike.
The Chamberlain 1/2 HP opener is one of the most popular models in North America, known for its balance of power, affordability, and reliability. However, even the best garage door opener occasionally needs fine-tuning. This in-depth guide walks you through everything you need to know about travel adjustment, safety protocols, troubleshooting tips, and ongoing maintenance to ensure your opener performs flawlessly.
Why Chamberlain 1 2 Hp Garage Door Opener Travel Adjustment Matters
Travel adjustment refers to setting how far your garage door moves when opening or closing. If your door doesn’t close completely, leaves a gap, or hits the floor too hard, you likely need to adjust the travel limits.
The Chamberlain 1 2 Hp Garage Door Opener Travel Adjustment process ensures that:
- The door opens to the correct height.
- The door closes fully and safely.
- Safety sensors and reverse mechanisms function properly.
- Your garage remains energy-efficient and secure.
Understanding the Basics of Chamberlain Garage Door Openers
The Chamberlain 1/2 HP garage door opener typically features a chain or belt drive, with a motor designed to handle sectional doors up to 7 feet in height. Chamberlain is a trusted brand and incorporates smart technology like MyQ, safety sensors, and manual travel adjustment controls.
Your garage door opener includes:
- Up and Down Travel Controls – Usually located on the side or back panel of the motor unit.
- Force Adjustment Settings – These determine how much force the opener uses to move the door.
- Safety Sensors – Positioned near the bottom of the door to prevent it from closing on people or objects.
When Should You Adjust the Travel Settings?
You should consider a Chamberlain 1 2 Hp Garage Door Opener Travel Adjustment if you experience any of the following:
- The door doesn’t close completely or bounces back open.
- The door stops before reaching the fully open position.
- The opener light flashes, indicating an error.
- The door slams to the floor or doesn’t reach the floor.
Travel settings may also shift over time due to:
- Vibration and wear.
- Changes in temperature or humidity.
- Spring tension loosening.
- Accidental tampering or power surges.
Tools You’ll Need
Before making adjustments to your Chamberlain 1 2 Hp Garage Door Opener, gather the following:
- Stepladder or sturdy stool
- Flathead screwdriver
- Safety glasses
- Flashlight (optional for dim garages)
- Owner’s manual (for specific model reference)
How to Perform Chamberlain 1 2 Hp Garage Door Opener Travel Adjustment
The adjustment process is fairly straightforward, especially with Chamberlain’s intuitive controls. Follow these step-by-step instructions carefully:
Step 1: Ensure Safety First
Unplug the opener before making any manual adjustments to avoid electrical shock. Make sure the area is clear of children and pets.

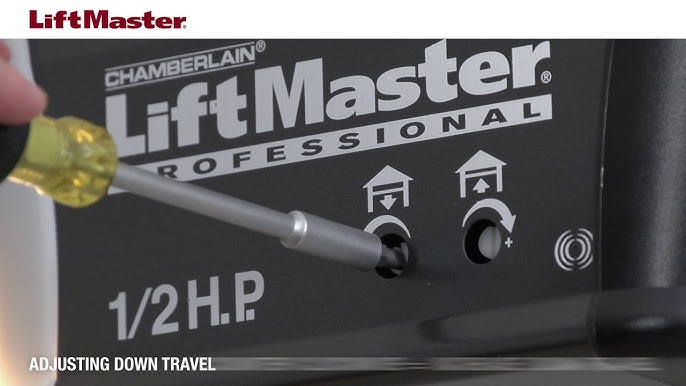

Step 2: Locate the Adjustment Screws
On most Chamberlain 1/2 HP units, you’ll find two screws labeled “UP” and “DOWN” on the motor housing. These control the travel limits.
Some models may have push-button adjustment controls instead of manual screws.
Step 3: Adjust the Up Travel
To increase the opening distance:
- Turn the “UP” screw clockwise (or press and hold the “UP” button) to raise the door higher.
- Make small adjustments, typically one turn at a time.
To decrease the opening height:
- Turn the “UP” screw counterclockwise.
Step 4: Adjust the Down Travel
To close the door more:
- Turn the “DOWN” screw clockwise to make the door go lower.
To make it stop earlier:
- Turn the “DOWN” screw counterclockwise.
Tip: Always test the door after each adjustment. Don’t make large changes all at once.
Step 5: Test the Door’s Operation
Plug the unit back in and press the wall button or remote. Observe the door’s movement. It should open and close smoothly without slamming, stopping short, or reversing unexpectedly.
Step 6: Check the Safety Reversal System
Place a 2×4 board flat under the center of the door. Close the door. It should hit the board and reverse direction immediately.
If it doesn’t reverse, adjust the down force settings and repeat the test.
Troubleshooting Common Travel Adjustment Issues
Issue 1: Door Reverses Before Touching the Floor
- Cause: Down travel too long or sensor misalignment.
- Fix: Reduce the down travel adjustment and realign sensors.
Issue 2: Door Doesn’t Open Fully
- Cause: Up travel too short or poor spring tension.
- Fix: Increase up travel and inspect spring system.
Issue 3: Door Slams Shut
- Cause: Excessive down travel or incorrect force setting.
- Fix: Reduce down travel and adjust down force sensitivity.
Issue 4: Flashing Lights on Motor Unit
- Cause: Safety sensor blocked or wiring fault.
- Fix: Clear sensor path and check for wire damage.
Tips to Ensure Long-Term Travel Accuracy
1. Periodically Recheck Travel Settings
Over time, garage doors may become misaligned. Check the travel distance every few months or after seasonal weather changes.
2. Lubricate Moving Parts
Friction can affect door operation. Use silicone-based lubricant on rollers, hinges, and springs.
3. Inspect Door Balance
An unbalanced door makes the opener work harder. Disconnect the opener and manually open the door halfway. If it moves, your springs may need adjustment.
4. Monitor for Unusual Sounds
Noisy operation can indicate internal stress or travel misalignment. Investigate and address it early.
Benefits of Proper Chamberlain 1 2 Hp Garage Door Opener Travel Adjustment
A properly adjusted garage door opener improves:
- Security: Fully closed doors protect against theft and weather.
- Energy Efficiency: Proper sealing keeps temperature-controlled air inside.
- Durability: Reduces strain on the opener motor and garage door components.
- Safety: Prevents accidental damage to vehicles, pets, or people.
Chamberlain Travel Adjustment and Smart Technology
For Chamberlain models integrated with MyQ Smart Technology, travel adjustment can trigger system notifications. If the door doesn’t close properly, you’ll receive a smartphone alert, allowing for quick action.
Note: Travel limits still require manual adjustment; MyQ doesn’t allow digital travel recalibration.
When to Call a Professional
If you’ve followed all the steps and your garage door still doesn’t function properly, consider calling a certified technician. You may be dealing with:
- Broken torsion springs
- Damaged rollers or cables
- Malfunctioning circuit board
- Faulty travel module
Never attempt spring repairs yourself unless you’re experienced, as garage door springs are under high tension and can be dangerous.
Customer Reviews Highlighting Travel Adjustments
Samantha K. – Phoenix, AZ
“My Chamberlain 1/2 HP opener was leaving a 2-inch gap at the bottom. After following a quick travel adjustment guide, it now seals perfectly!”
Tim B. – Raleigh, NC
“The UP limit needed just one turn of the screw. Now my door doesn’t slam into the ceiling anymore. Great product, easy fix.”
Martin H. – Denver, CO
“I was ready to replace the opener, but it just needed a travel adjustment. Took me less than 10 minutes after reading the manual and watching a tutorial.”
Final Thoughts
Performing a Chamberlain 1 2 Hp Garage Door Opener Travel Adjustment is a simple yet essential maintenance task that keeps your garage door functioning smoothly, safely, and efficiently. With just a few tools and a bit of patience, most homeowners can perform the adjustment themselves and enjoy years of trouble-free garage door operation.
Understanding and adjusting travel limits not only prevents costly damage but also ensures your garage stays secure and functional. With Chamberlain’s user-friendly design and reliable engineering, you’re in good hands.
