If your Chamberlain 1/2 HP garage door opener has suddenly stopped functioning properly, the issue may lie with the safety sensors. These are built-in infrared systems designed to detect obstructions in the garage door’s path. While they’re a critical safety feature, there are instances when the sensors can become problematic—especially if they are misaligned, dirty, or damaged. In such cases, many homeowners search for a way to temporarily bypass the sensors to regain control of their garage doors.
In this guide, we’ll explore the Chamberlain 1 2 Hp Garage Door Opener Sensor Bypass, detailing when and how it can be done safely. We’ll also discuss long-term solutions, legal implications, and the importance of maintaining safety standards in your garage door system.
Why Are Garage Door Sensors Important?

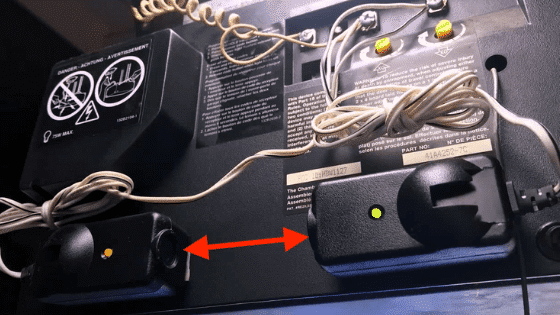

Modern garage door openers are equipped with photoelectric safety sensors that are mounted near the floor on either side of the door. These sensors transmit an invisible infrared beam across the garage door opening. If anything breaks this beam—such as a person, pet, or object—the system will automatically stop or reverse the door from closing.
For the Chamberlain 1/2 HP garage door opener, this feature is a critical safety mechanism and is required by U.S. federal law (UL 325 standards) for all garage door openers manufactured after 1993.
Benefits of safety sensors:
- Prevents accidents and injuries
- Protects property from being crushed
- Adds reliability to automatic door operation
However, faulty sensors can be a real hassle. That’s why knowing how to bypass them (temporarily and safely) is helpful when you’re troubleshooting.
Common Problems with Chamberlain Garage Door Sensors
Before considering a sensor bypass, it’s crucial to confirm that the sensors are indeed the problem. Here are some of the most common issues with Chamberlain 1/2 HP garage door opener sensors:
- Sensor misalignment – the beam can’t connect, causing the opener to reverse.
- Dirty lenses – dust, spider webs, or debris block the beam.
- Loose wiring – a disconnected sensor wire can cause malfunction.
- Damaged sensors – from weather exposure, impact, or age.
- Sunlight interference – direct sunlight may disrupt the infrared beam.
Signs your sensor system is malfunctioning:
- The door opens but won’t close unless you hold down the wall button.
- The opener light blinks several times and the door stops.
- The sensor lights aren’t on or one is blinking.
Chamberlain 1 2 Hp Garage Door Opener Sensor Bypass — Step-by-Step Guide
Performing a Chamberlain 1 2 Hp Garage Door Opener Sensor Bypass is not generally recommended as a permanent solution. However, in cases where immediate access is needed—such as emergencies or malfunction diagnosis—you can perform a temporary bypass.
⚠️ Safety Notice:
Bypassing garage door sensors may violate local codes and UL 325 safety regulations. Always use this guide responsibly and revert back to proper safety sensor operation as soon as possible.
Method 1: Press and Hold the Wall Control Button (Temporary Override)
Most Chamberlain openers allow a temporary bypass using the wall-mounted control panel:
- Press and hold the wall-mounted button.
- Continue holding until the door closes completely.
- Release the button after the door is shut.
This method disables the sensors just long enough to shut the door and is fully reversible.
Method 2: Disconnect the Sensors from the Logic Board (Advanced)
If your sensors are completely non-functional, and you need a longer-term bypass (for diagnostics), follow these steps:
- Turn off power to the opener.
- Open the motor housing to access the wiring.
- Locate the terminals marked “SENS” or “Sensor” on the opener logic board.
- Remove the sensor wires (usually white and black/white).
- Connect a jumper wire between the sensor terminals to simulate a complete circuit.
- Power the opener back on.
⚠️ This method is risky and may not work on newer Chamberlain models due to advanced safety logic. Proceed only if you’re experienced with low-voltage systems.
Method 3: Use a Sensor Emulator or Resistor (Not Recommended)
Some users attempt to “trick” the system using:
- Resistors
- Infrared signal repeaters
- Sensor emulators
These are not officially supported and could void warranties or cause malfunction. Avoid this route unless you’re working under professional guidance.
Legal and Safety Considerations
Bypassing sensors on a Chamberlain garage door opener is a legal gray area. Under UL 325, all openers must have functioning safety sensors or an equivalent monitored safety device.
Potential Consequences:
- Voided warranty
- Homeowner’s insurance issues
- Liability in case of injury or damage
- Violation of building codes
Alternative Approach:
If sensors are faulty, the best course of action is to replace or repair them, rather than bypassing. Sensor kits for Chamberlain units are relatively affordable and easy to install.
When Is Sensor Bypass Justified?
There are only a few scenarios when a Chamberlain 1 2 Hp Garage Door Opener Sensor Bypass may be justified temporarily:
- Emergency situations (e.g., stuck door, natural disaster)
- Troubleshooting or testing system behavior
- Sensor replacement in progress
- Damaged wiring awaiting repair
In all cases, make sure no person, pet, or object is under the door during operation.
How to Replace Faulty Garage Door Sensors
If you’re ready to move beyond bypassing, here’s a quick replacement guide:
- Unplug the opener.
- Remove the old sensors from the mounting brackets.
- Disconnect wiring and install the new sensor units.
- Reconnect wires, ensuring polarity matches (white-to-white, black-to-black).
- Align the sensors—both LEDs should be solid.
- Test the system using the wall button and remote.
Tip: Always use OEM parts from Chamberlain to ensure compatibility.
Maintenance Tips to Avoid Future Sensor Problems
To avoid future scenarios where you feel the need to bypass sensors:
- Clean the lenses monthly with a dry cloth.
- Secure wiring with clips to avoid wear or corrosion.
- Realign sensors using a laser level or string for straight beam path.
- Replace old brackets if bent or unstable.
- Avoid storing tall objects near the sensors.
FAQs About Sensor Bypass
Q: Can I permanently disable Chamberlain garage door sensors?
A: It is technically possible but highly discouraged for safety and legal reasons.
Q: Why does my door only close when I hold the wall button?
A: This is a sign that your safety sensors are blocked, misaligned, or malfunctioning.
Q: Will a sensor bypass work on all Chamberlain models?
A: Newer models have built-in detection for sensor absence and may prevent operation entirely without sensors.
Q: Are wireless sensors available?
A: No, Chamberlain safety sensors are hardwired by design for reliability and safety compliance.
Final Thoughts
The Chamberlain 1 2 Hp Garage Door Opener Sensor Bypass can be a useful tool for advanced users, especially when you’re troubleshooting sensor issues or urgently need to operate the door. However, this should always be a temporary solution, never a permanent fix. Safety sensors exist for a reason—they protect you, your family, your pets, and your property.
Rather than relying on bypasses, consider inspecting, realigning, or replacing faulty sensors with genuine Chamberlain parts. This ensures your garage door system continues to function safely and reliably.
If you’re ever in doubt, contacting a certified garage door technician is the safest and most effective route.
