If you own an older home, chances are your garage might still be powered by a reliable but vintage 1979 Chamberlain 7200 garage door opener. These units were built to last, but like any long-running electrical device, certain components may eventually wear out. One such common issue is a burned-out or malfunctioning light socket.
In this guide, we’ll walk you through everything you need to know about 1979 Chamberlain 7200 garage door opener light socket replacement—from identifying symptoms of a bad socket to performing the replacement safely and effectively.
Whether you’re a DIY enthusiast or a homeowner simply wanting to save money on repairs, this article is for you.
Why Replacing the Light Socket Is Important
The light socket in your garage door opener does more than just hold a bulb—it plays a key role in visibility and safety. A functioning garage opener light helps illuminate your garage when you enter or exit, deters theft, and prevents trips and falls.
When the socket malfunctions, you may notice:
- The bulb flickers or won’t turn on
- Intermittent lighting when the door opens
- The bulb burns out prematurely
- There’s visible corrosion or melting in the socket
If any of these apply to you, a 1979 Chamberlain 7200 garage door opener light socket replacement is likely in order.
Tools and Materials You’ll Need
Before you get started, gather the following tools:
- Screwdrivers (Phillips and flat-head)
- Voltage tester
- Replacement light socket (compatible with Chamberlain 7200 model)
- Wire strippers
- Electrical tape
- Safety goggles and gloves
Optional:
- Compressed air or a soft brush for cleaning dust from inside the unit
- Multimeter (to test wiring continuity if needed)
1979 Chamberlain 7200 Garage Door Opener Light Socket Replacement – Step-by-Step Instructions
This section will walk you through the process of replacing the light socket in your garage door opener.
Step 1: Disconnect Power
Unplug the garage door opener from the electrical outlet. If it’s hardwired, turn off the breaker to ensure there’s no power running to the unit. Safety first.
Step 2: Remove the Light Cover and Bulb
Remove the lens or light cover (usually plastic) by unscrewing or unclipping it. Then, take out the old bulb. Be careful if it’s hot or cracked.
Step 3: Access the Socket Assembly
Open the housing of the opener by unscrewing the casing. The light socket is typically located on the side or front of the unit. Once exposed, you’ll see two wires leading to the socket—usually black and white.
Step 4: Inspect the Socket
Check for signs of wear such as:
- Burn marks or discoloration
- Loose wiring connections
- Cracked or corroded terminals
If any of these are present, you’re on the right track for replacement.
Step 5: Disconnect the Old Socket
Use a screwdriver to remove the screws securing the socket in place. Then gently disconnect the wires (either by pulling off terminals or unscrewing them). Take note of where each wire connects.
Step 6: Install the New Socket
Take your new replacement light socket compatible with Chamberlain 7200 and connect the wires:
- Black wire to hot terminal
- White wire to neutral terminal
Secure the socket in place and ensure the wires are snug but not overly tightened.
Step 7: Reassemble the Unit
Once the socket is secured, reattach the opener housing and screw it back together. Then replace the light cover and insert a new bulb—preferably an LED bulb that is opener-compatible to prevent interference.
Step 8: Restore Power and Test
Plug the opener back in or turn the breaker back on. Use the wall control or remote to trigger the door and ensure the light turns on as expected.

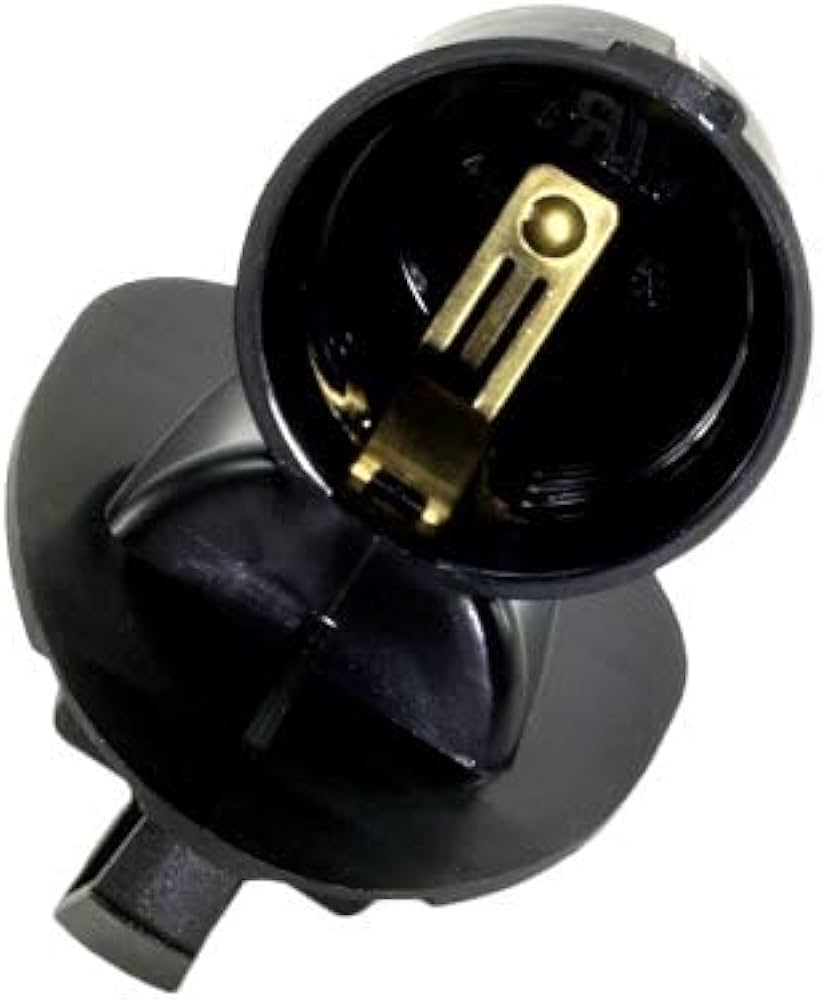

Choosing the Right Replacement Light Socket
Not all light sockets are created equal—especially for a vintage model like the Chamberlain 7200. Here’s what to look for:
- Voltage rating: 120V standard
- Socket type: Medium E26 screw base
- Heat resistance: Able to handle bulbs up to 100W
- Material: Ceramic or heavy-duty thermoplastic preferred
- Mounting type: Usually panel mount or bracket-mounted
You can find suitable replacement sockets at:
- Chamberlain’s parts website
- Home Depot or Lowe’s
- Amazon (look for compatibility or universal models)
Common Issues After Socket Replacement
Sometimes issues persist even after replacing the socket. Here’s how to troubleshoot:
1. Light Still Doesn’t Turn On
- Check the new bulb—is it functional?
- Confirm that wiring connections are tight.
- Use a multimeter to check for voltage at the socket when the door is activated.
2. Bulb Burns Out Quickly
- Use bulbs rated for vibration, especially garage-rated LEDs.
- Avoid high-wattage incandescent bulbs, which can overheat.
3. Remote Malfunctions After Replacement
- Certain LED bulbs may cause RF interference. Replace with a Chamberlain-compatible LED.
Benefits of LED Lighting in Older Openers
Even though your opener is from 1979, you can still benefit from modern lighting technology.
Advantages of using LED bulbs include:
- Longer lifespan (up to 25,000 hours)
- Lower power consumption
- Better light output (lumens)
- Cooler operating temperatures
Just ensure the LED you choose is FCC-compliant and made for garage door openers to avoid interference.
When to Call a Professional
While the 1979 Chamberlain 7200 garage door opener light socket replacement is a DIY-friendly project, call in a pro if:
- You’re uncomfortable working with electrical components
- The unit shows signs of internal electrical damage
- You suspect other problems like a faulty control board
- The light still doesn’t work after socket replacement and bulb changes
Garage door professionals or electricians can run diagnostics to isolate more complex issues.
Preventive Maintenance Tips for Your Chamberlain 7200 Opener
To extend the life of your vintage opener:
- Clean the unit regularly to remove dust
- Use vibration-resistant bulbs
- Inspect the socket and wiring annually
- Avoid over-tightening light covers or sockets
- Use a surge protector for plugged-in models
Preserving Your Classic Chamberlain Opener
Many homeowners love their old Chamberlain 7200 opener for its rugged durability. Instead of replacing the entire unit, small fixes like a light socket replacement can extend its usability for years.
By following this guide, you’ve taken one more step to keep your trusted garage system running smoothly.
